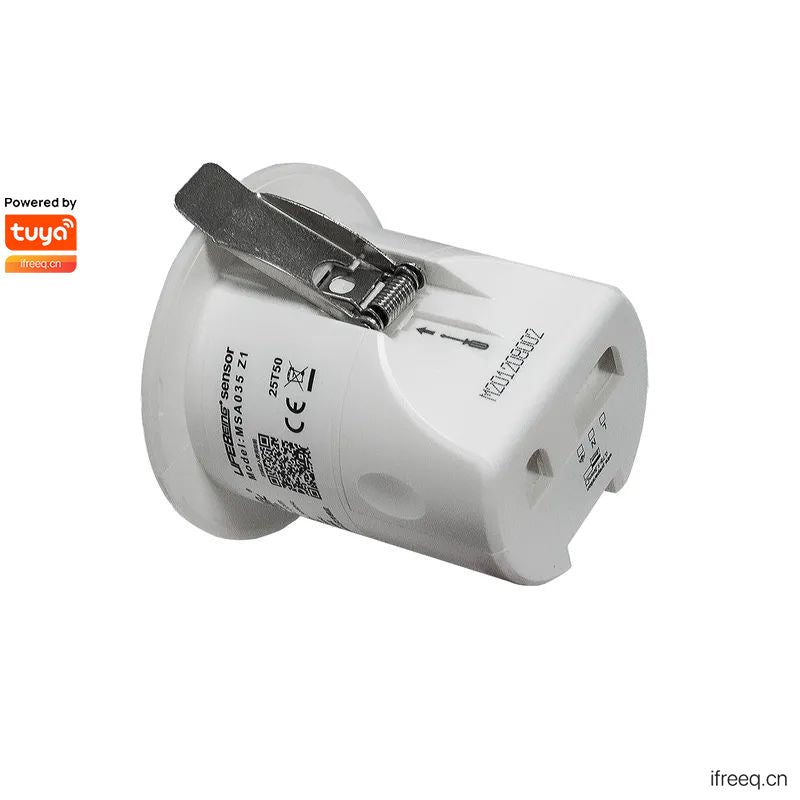

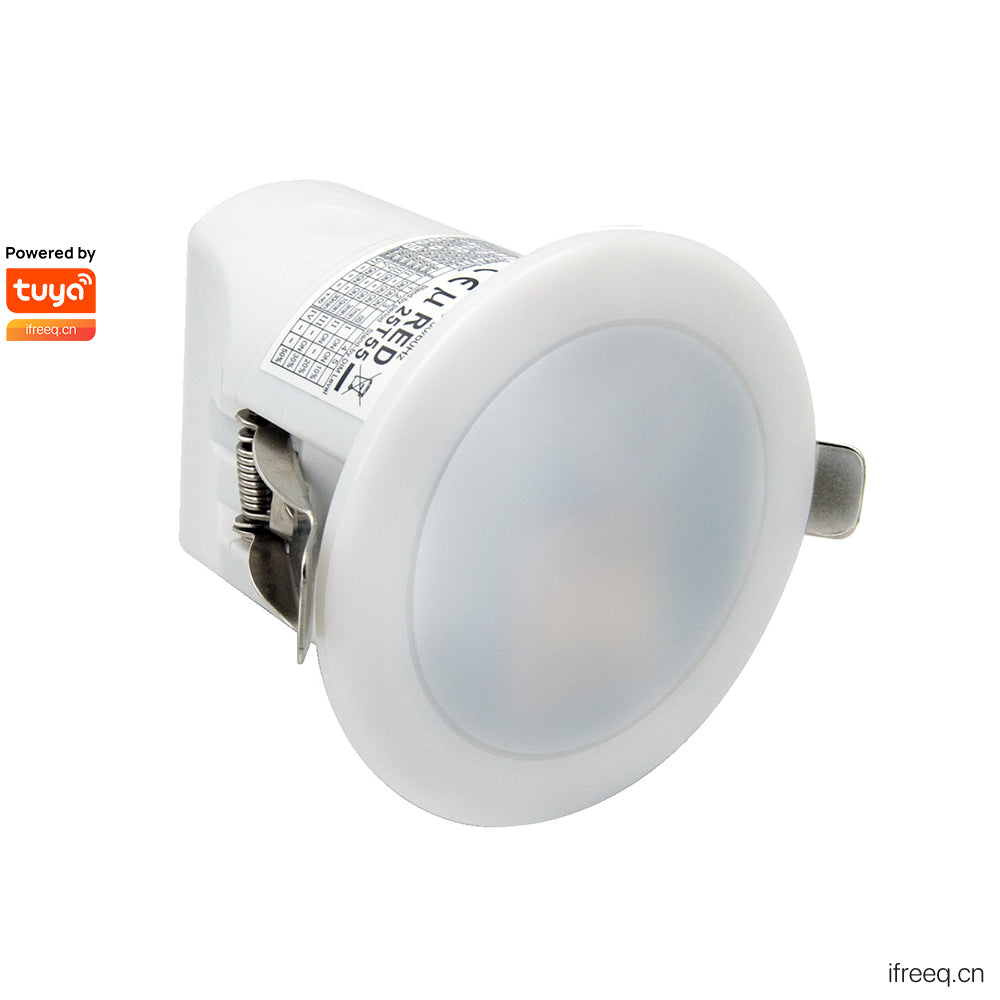

MSA035-Z1 Zigbee Life Being Sensor
ifreeq.cn

MSA035-Z1 Zigbee Life Being Sensor

Add Your Review
Available:In Stock
$65.00
Wishlist
Input Operating voltage 108-305VAC 50/60Hz
Rated voltage 120V/277VAC 50/60Hz
Stand-by power <1W
Surge test N—L: 1kV
Output Working mode ON/OFF 1-10V dimming
Type of load Inductive or resistive
Load capacity 400W (Inductive) 800W (resistive) @120V AC
800W (Inductive) 1000W (resistive) @277v AC
Max.surge capacity 50A (50% Ipeak, twidth =500uS, 277Vac full load, cold start); 80A (50% Ipeak, twidth =200uS, 277Vac, full load, cold start)
Dim interface 1-10V Dimming < 50mA(Non-constant source)
wiring mode Press the terminal
Sensor parameters Operating frequency 5.8 GHz ±75 MHz,ISM band
Transmitting power 0.5mW Max.
Hold time 5S/30S/1min/3min/20min/30min
(remote control Settings: 30 s / 5 s / 1 min / 3 min / 5 min, 10 min / 20 min / 30 min)
Stand-by dim Level 10/20/30/50% (remote control setting: 10/20/30/50%)
Stand-by Period 0 s / 1 min / 3 min / 10 min / 30 min / + up
(remote control Settings: 0 s / 10 s / 1 min / 3 min / 5 min, 10 min / 30 min/Disable)
Detection Area 100%/50%(remote control Settings:100%/75%/50%/25%)
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Detection range (radius) 3-5m (ceiling mounting;3m)
Mounting height support 6m Max.
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)
Operating envrionment Operating Temperature -25℃…+55℃ Humidity: 85% (non-dew)
Storage Temperature/humidity -40℃…+80℃ Humidity: 85% (non-dew)
Certificate Standards Safety standards EN61058-1
Environmental Requirement Compliant to RoHS
Certificate CE RoHS

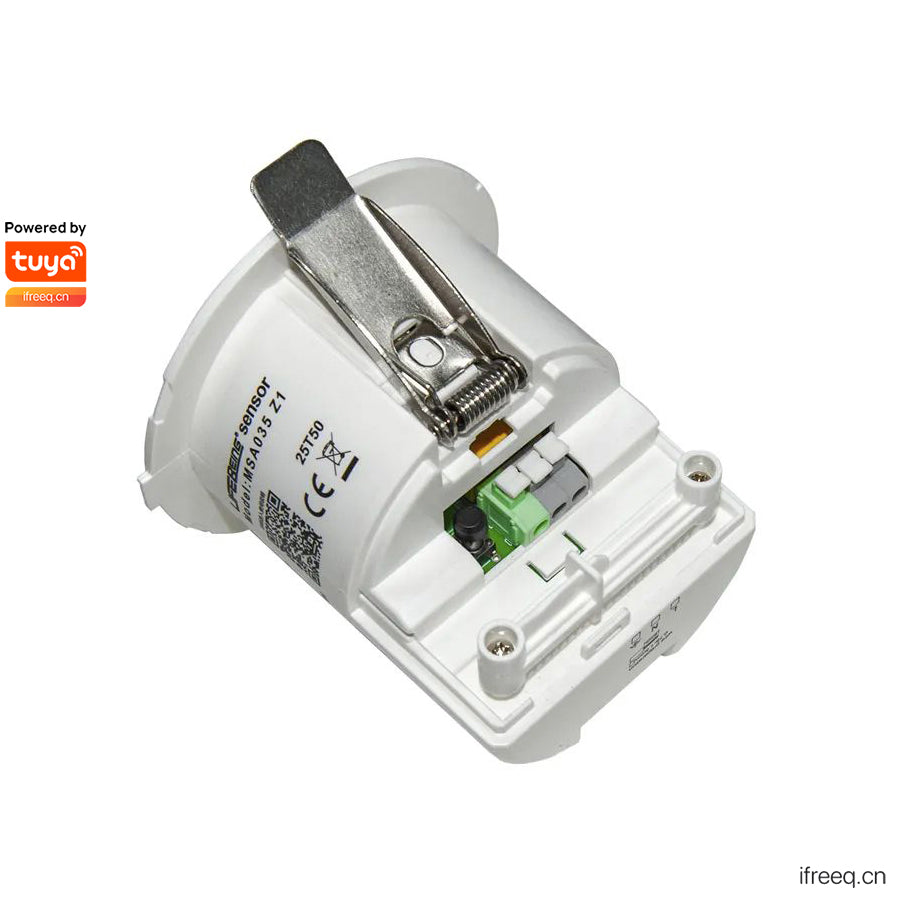

Others Wiring "L N ground" port diameter: 0.75-1.5 mm2 "1-10v" port diameter: 0.75-1.0 mm2
IP Rating IP20
Protection Class Class II
Installation Built-in
Installation imension Ø70-Ø80
Package White box + flat card + outer box (K=A)
Net weight 153.2g
Life time 50000h @ Ta full load
Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s
